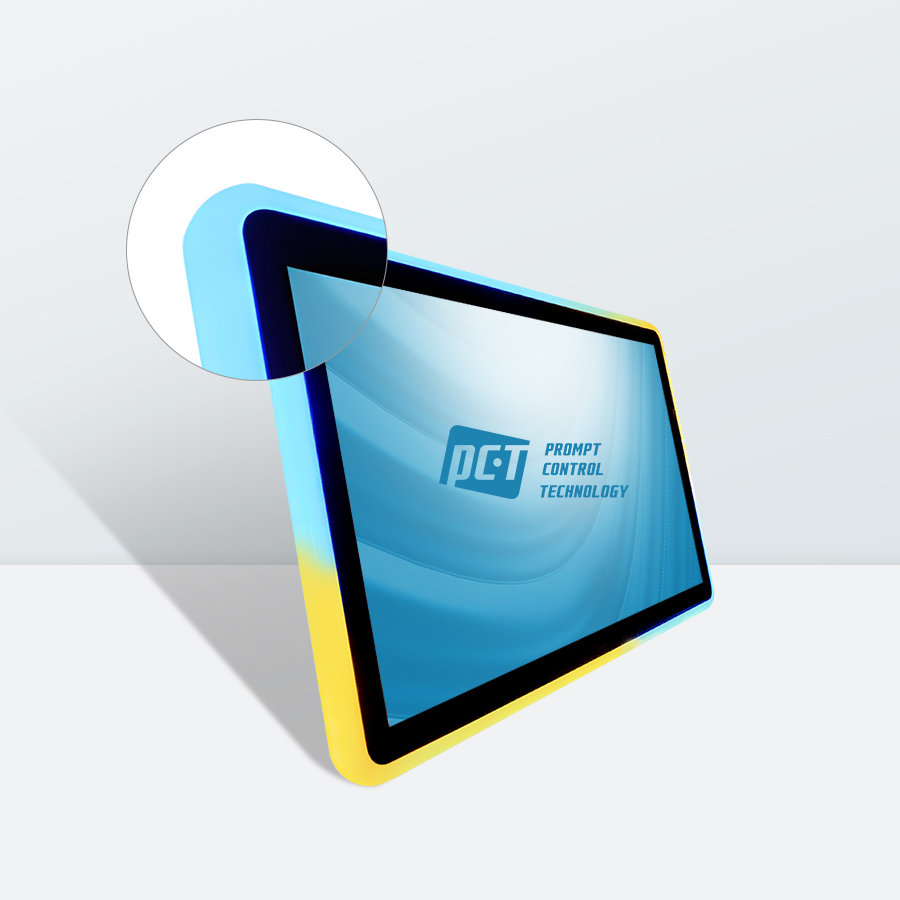

23.8″ LED front framed monitor（Halo）
19OTL-N238HDIG-P is engineered for high-intensity casino hardware and modern slot machine integration. Featuring superior touch responsiveness and long-term reliability, it is the premier choice for global casino gaming machine manufacturers and gaming cabinet builders looking for a high-performance casino display solution.
Speification
23.8″ Halo LED front framed monitor
| Product | 23.8” LED Framed LCD Touch monitor (Halo) |
| Display Resolution | 1920*1080 [FHD] |
| Type | Projected Capacitive Technology (P-CAP Touchscreen) |
| Touch Operation | Finger or touch pen |
| Compatible O/S | WinXP, Win7, Win8, Windows 10, Android, Linux |
| Environment Parameter | Operation: 0~+50°C Storage : -20~+70°C,Operating Humidity : 20%~90% |
| Interface | VGA, DVI, HDMI, 12VDC, Molex 43020-0600 (LED Lighting Control Port) |
| Product Construction | True Flat surface, closed frame design |
| Spec Sheet | Download |
| White Luminance | Typ.250cd/m2 (after PCAP Min. 220cd/m2), option 300cd/m2 |
| Display Ratio | 16:09 |
| Backlight | LED |
| MTBF | 50000Hrs |
| Active Area | 527.04mm x296.46mm |
| Viewing Angle | 89°/89°(Left / Right) , 89°/89°(Vertical / Horizontal) |
| Support Color | 16.7M , 72% NTSC |
| Response Time | Typ. 5ms |
| Contrast Ratio | Typ.1000:1 |
| Touch Points | 10 points |
| Outline Dimension | 598.00mm×370.00mm×46.80mm |
| Installation | VESA 100mm / 75mm |
| Heat Radiation | Natural Air Cooling |
| Input Voltage | DC12V/4A |
| Warranty | 12 months |
| Certification | CE , FCC , REACH, RoHS |
