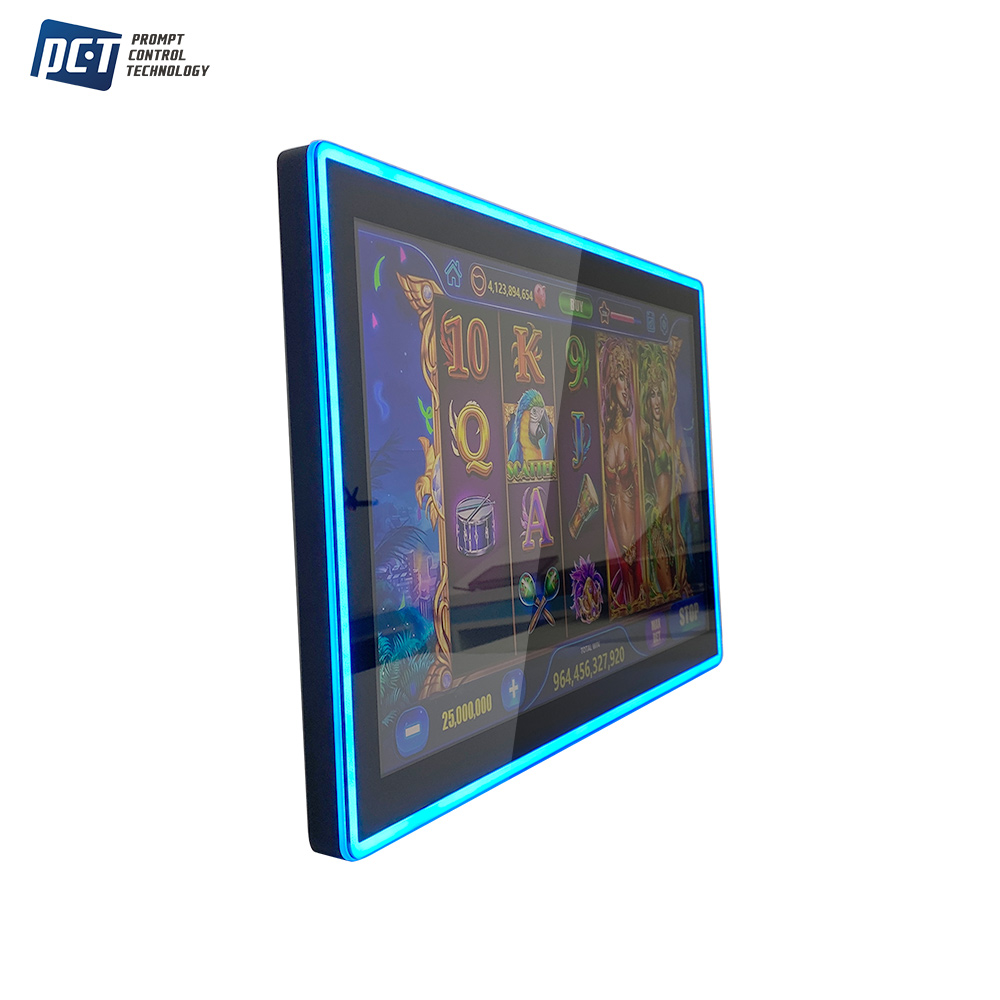

PCT01-238T-Edge(23.8″ LED front framed monitor)
PCT01-238T-Edge(23.8″ LED front framed monitor) - Image 2

PCT01-238T-Edge(23.8″ LED front framed monitor)

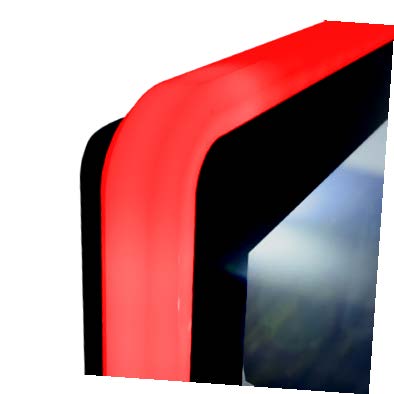

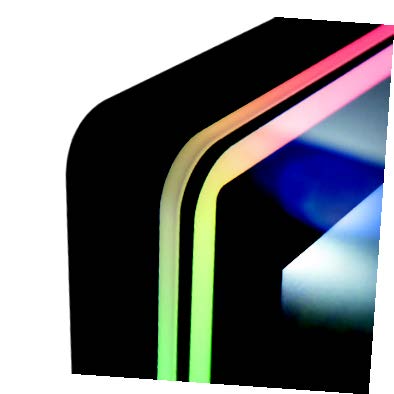

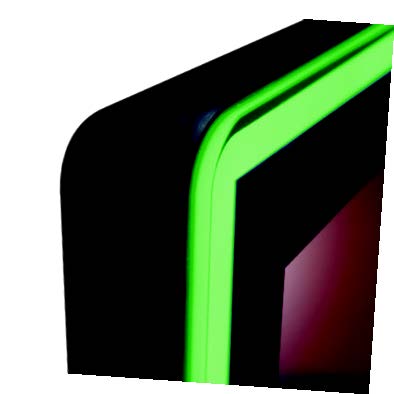

23.8″ LED Framed PCAP Touch Screen Monitor (Front +Edge+Backlight)

23.8-inch LED framed touch screen monitor is engineered specifically for rigorous commercial, industrial, and self-service terminal environments. Combining a sleek, slim-bezel framed design with robust industrial-grade performance, this display delivers seamless human-machine interface (HMI) interaction. Optimized for embedded mounting and 24/7 continuous operation, it is the ideal interactive solution for global system integrators and OEMs.

Main Features:

  • Rigid high‐quality PCB‐mounted LEDs, no adhesive strips,no hotspots,no dark corners
  • FHD 1920×1080, WVA 178°x 178° for landscape or portrait usage and 300nits high brightness for outdoor use
  • Robust Framed Design for Embedded Mounting
  • Versatile Interface & Plug-and-Play
  • 10‐touch PCAP behind 3mm tempered glass
  • True‐flat, black closed‐frame designs

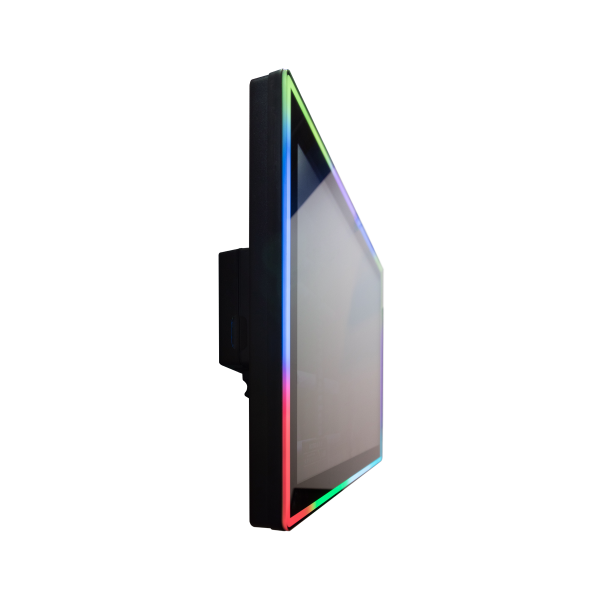

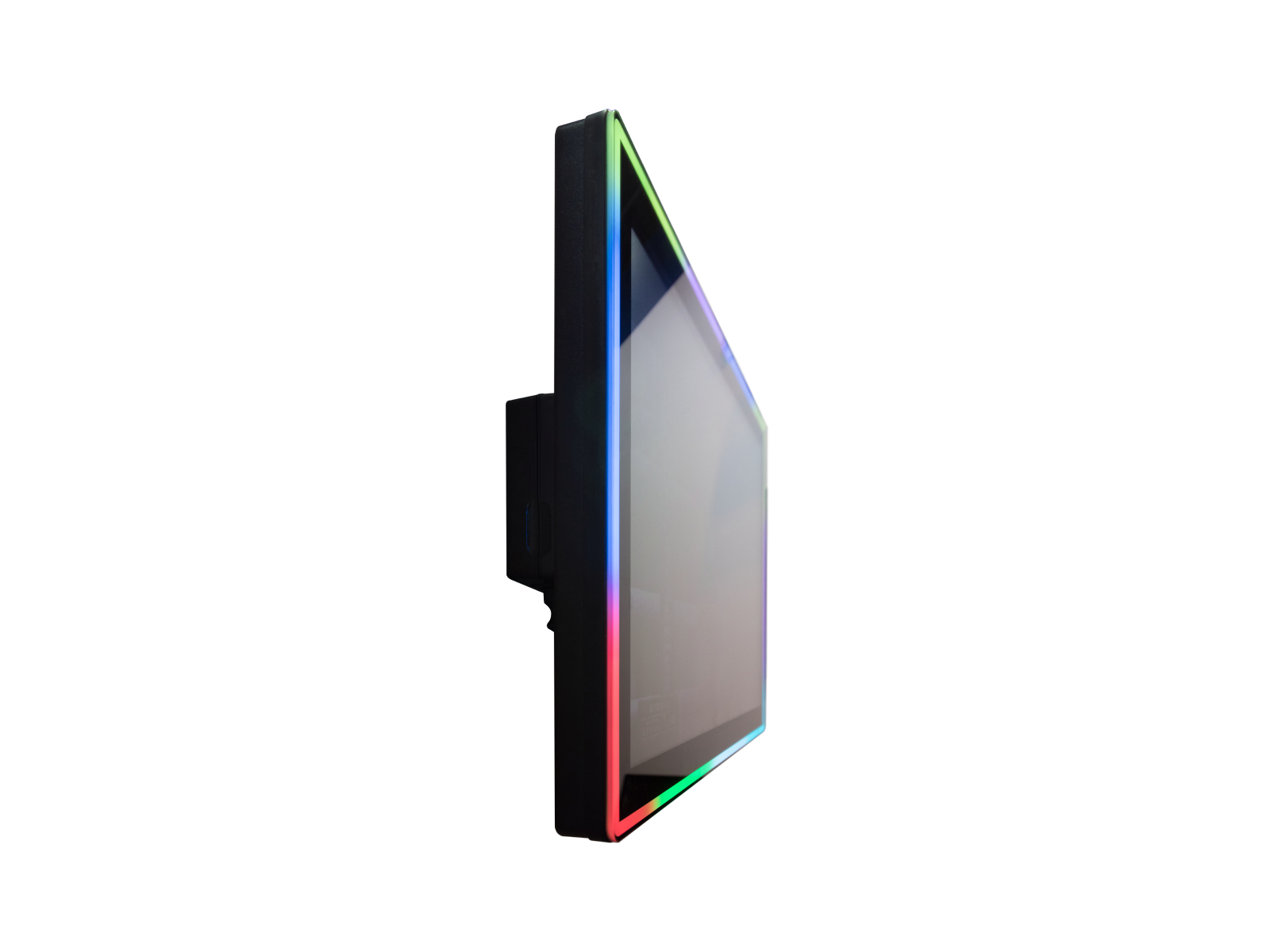

  • Dual‐line LEDs in Addressable version
  1. 21.5″ 1920*1080
  2. 23.8″ 1920*1080
  3. 27″ 1920*1080
Online service

    23.8″ Industrial LED Framed Touch Screen Monitor | OEM/ODM Factory

    PCT01-238T-Edge is heavy-duty engineered for high-intensity casino  hardware and modern slot machine integration. Featuring superior touch responsiveness and long-term reliability, it is the premier choice for global casino gaming machine manufacturers and gaming cabinet builders looking for a high-performance casino display solution.

    23.8 Framed P-CAP Touchmonitor

    Product
    23.8” LED Framed LCD Touch monitor (Front + Edge)
    Display Resolution
    1920*1080 [FHD]
    Type
    Projected Capacitive Technology (P-CAP Touchscreen)
    Touch Operation
    Finger or touch pen
    Compatible O/S
    WinXP, Win7, Win8, Windows 10, Android, Linux
    Environment Parameter
    Operation: 0~+50°C Storage : -20~+70°C, Operating Humidity : 20%~90%
    Interface
    VGA, DVI, HD-MI, 12VDC, Molex 43020-0600 (LED Lighting Control Port)
    Product Construction
    True Flat surface, closed frame design
    Spec Sheet
    Download
    White Luminance
    Typ. 250cd/m2 (after PCAP Min. 220cd/m2)
    Display Ratio
    16:09
    Backlight
    LED
    MTBF
    50000Hrs
    Active Area
    527.04mm x296.46mm
    Viewing Angle
    89° /89° (Left / Right) , 89° /89° (Vertical / Horizontal)
    Support Color
    16.7M , 72% NTSC
    Response Time
    Typ. 5ms
    Contrast Ratio
    Typ. 1000:1
    Touch Points
    10 points
    Outline Dimension
    584.00mm×352.00mm×55.00mm
    Installation
    VESA 100mm / 75mm
    Heat Radiation
    Natural Air Cooling
    Input Voltage
    DC12V/4A
    Warranty
    12 months
    Certification
    CE , FCC , REACH, RoHS

    Tech: Bi-Stable Technology & No Backlight;Anti-Glare & Eye-Friendly Optical Treatment

    Customization: Custom open-source API/SDK, customized aluminum or plastic housing (IP65 optional), custom logo printing, flexible mounting brackets (glass/wall mount)
